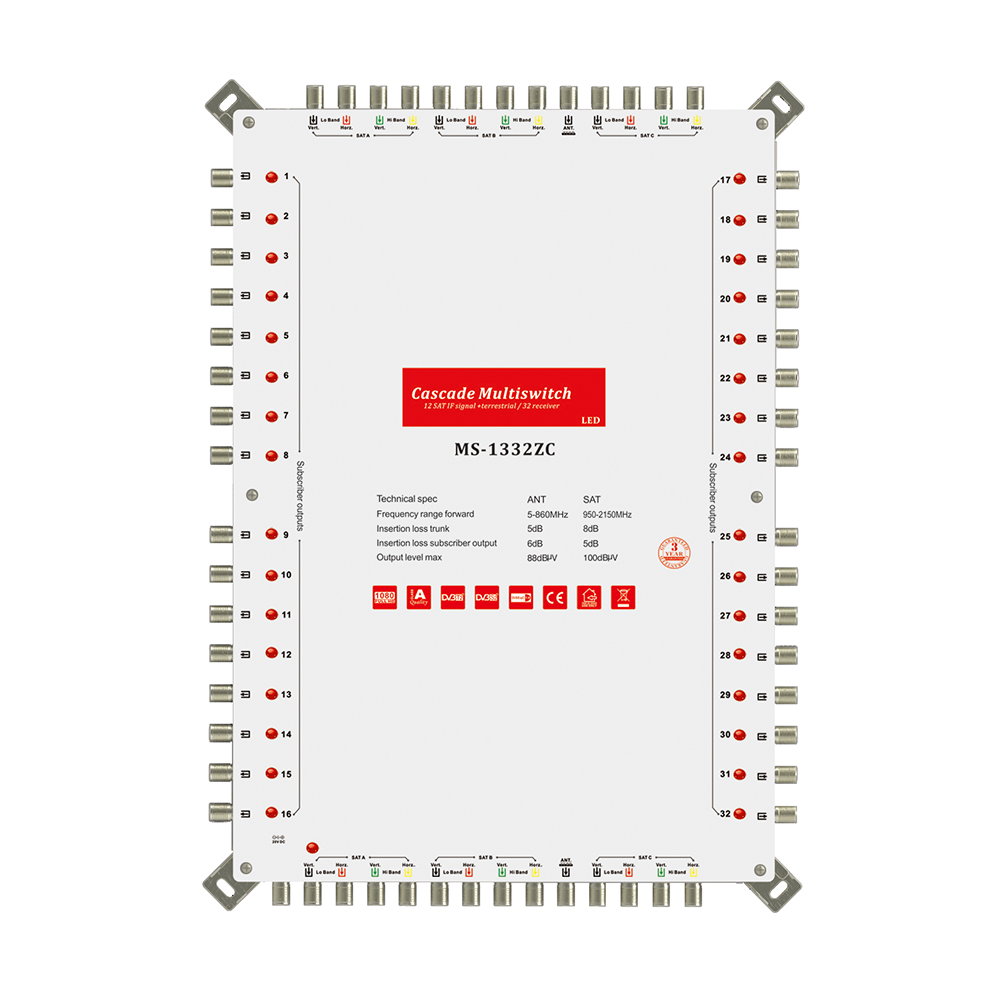

MS-1332ZC Cascadable Multiswitch of 13 in 32
※ Zinc die-cast housing
※ 3 SAT+ 1 ANT input ,32 output
※ SAT IF selected by 13/18V ,0/22K and Diseqc 1.0 /2.0
※ Connectors: "F" type Female
※ Power supplied by satellite receiver or external power adapter(20±1V ,2500mA)
※ 3 SAT+ 1 ANT input ,32 output
※ SAT IF selected by 13/18V ,0/22K and Diseqc 1.0 /2.0
※ Connectors: "F" type Female
※ Power supplied by satellite receiver or external power adapter(20±1V ,2500mA)
| Frequency Range ANT (MHZ) | 5-860 |
| Frequency Range SAT (MHZ) | 950-2150 |
| Insertion Loss ANT (dB) | 5 |
| Insertion Loss SAT (dB) | 2 |
| Insertion Loss Trunkline (dB) | ANT: 3, SAT: 6 |
| Isolation Switch SAT in (dB) | 28 |
| Isolation Cross (dB)25Isolation IN/OUT (dB) | 25 |
| Return loss input (dB) | 12 |
| Return loss output (dB) | 8 |
| Output level ANT(dBuv) | 88 |
| Output level SAT(dBuv) | 100 |
