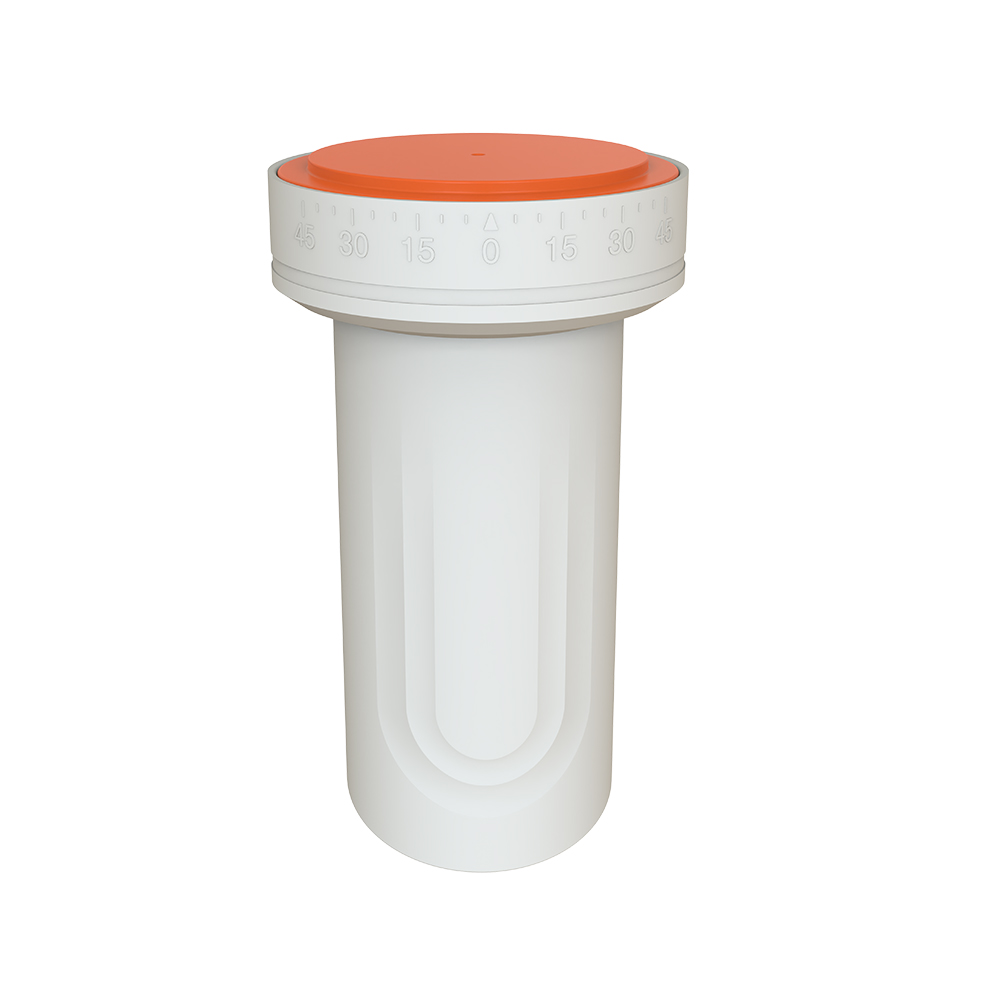

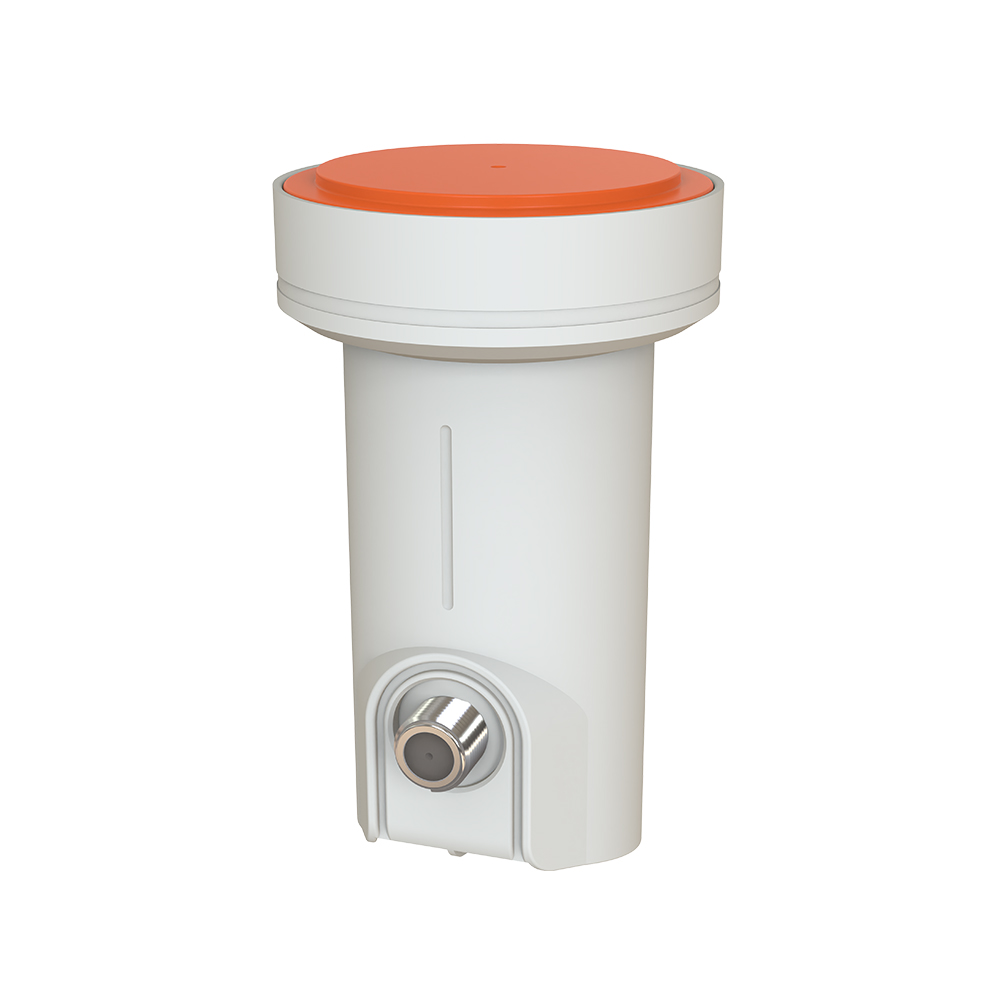

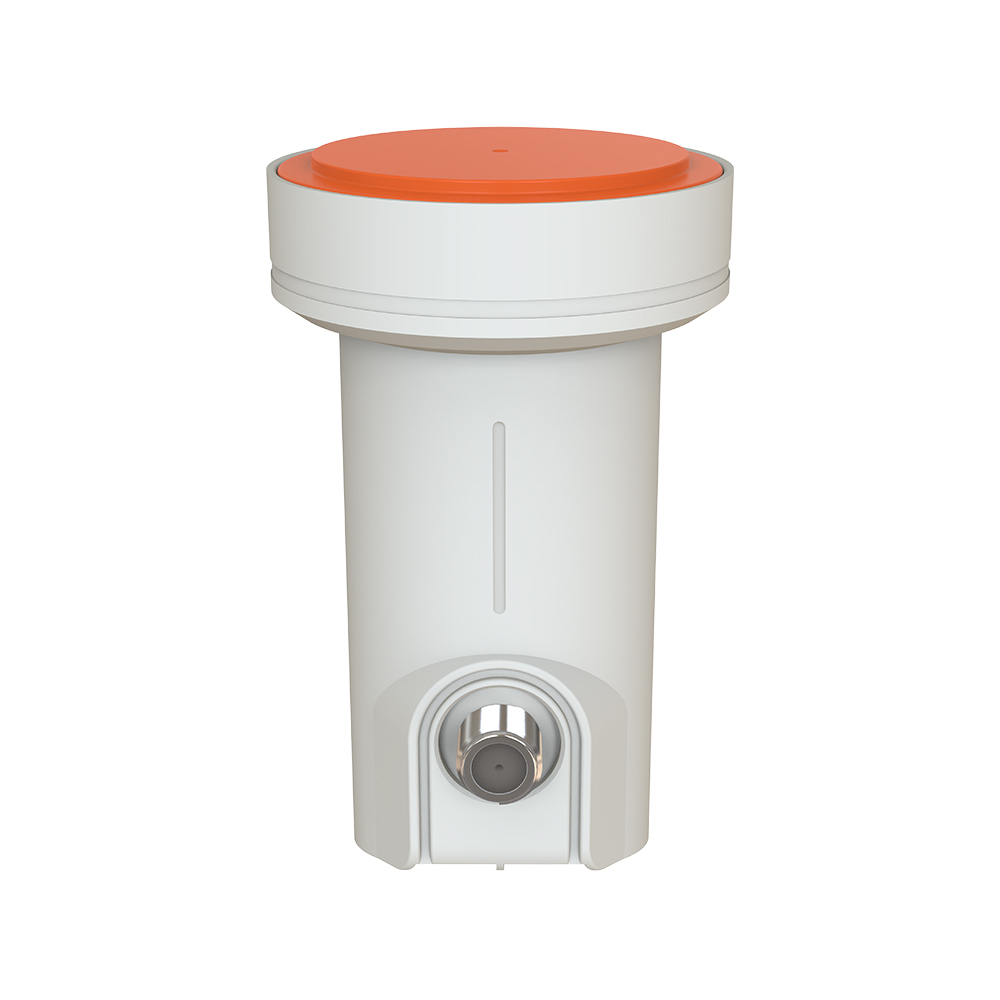

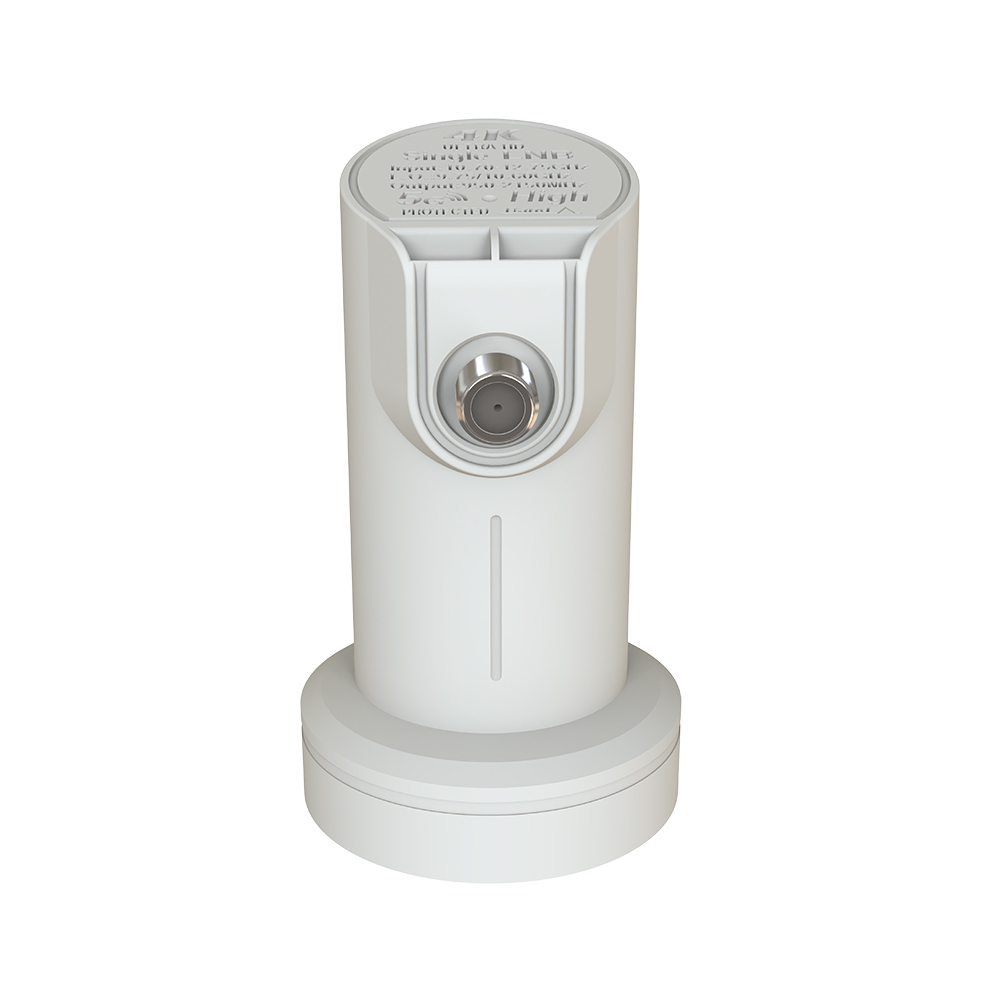

GKF-2511 Universal Ku-Band LNBF

※ Universal Linear Multi-grade Dual Single LNB
※ Solution for DTH operators and satellite broadcast reception
※ Supporting 4K Ultra HD transmissions
※ Excellent performance with low noise and high gain
※ Full coverage of Ku-Band for analog and digital reception.
Main features:
1.DVB-S2 (HD and UHD) compliant
2.Low noise figure
3.Low power consumption
4.High cross-pol isolation
5.High frequency stability
6.Extremely heat and cold resistant
7.UV-resistant weather protection housing with a custom-fit weather protection cap



Specifications:

Item Specification Item Specification
Input Frequency Range Low Band:10.70~11.70GHz Gain Flatness ±0.5dB/27MHz
High Band:11.70~12.75GHz Cross POL. Isolation 20dB(Min.)
Output Frequency Range Low Band:950~1950MHz Image Rejection 40dB(Min.)
High Band:1100~2150MHz Output VSWR 2.0:1((Typ.)
L.O. Frequency Low Band:9.75GHz P1dB 0dBm (Min.)
High Band:10.60GHz DC Current Consumption 200mA(Typ.)
L.O. Frequency Stability ±1.0MHz (Max.)@+25℃ Low/High Band Switching Low Band:0Hz
±2.0 MHz (Max.)@-30℃~+70℃ High Band:22KHz±4KHz
L.O. Phase Noise  -75dBc/Hz@1KHz POL. Switching Voltage 10.5~14.0V @Vertical
-80dBc/Hz@10KHz 16.0~20.0V @Horizontal
 -90dBc/Hz@100KHz Relative Humidity 0%~95%
Conversion Gain 60dB(Typ.) Operating Temperature -30℃~+70℃
Noise Figure 0.6dB(Typ.) Connector Type 75Ω Female Connector

Drawings:
